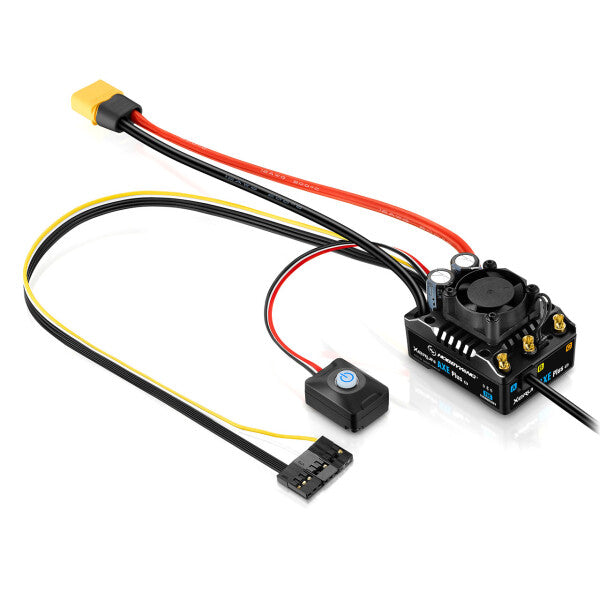

Hobbywing Xerun AX Plus R3 brushless controller - 30113201

Hobbywing Xerun AX Plus R3 brushless controller 6A BEC 6S 1/10 scale with super sensor technology

The XeRun AXE Plus R3 Brushless FOC ESC offers a powerful solution for crawler vehicles of various sizes. With support for up to 6S LiPo batteries and a maximum continuous current of 135A, it is versatile and thanks to the built-in FOC technology, the ESC delivers linear power, plenty of torque and almost silent operation - ideal for demanding terrain.

The intelligent control also allows automatic adjustments of the torque for easy climbing and descending hills, while the smart fan control only starts when needed to save energy while driving and optimize the operating temperature. Thanks to the built-in Bluetooth module, the ESC can be connected directly to the mobile app to adjust parameters, monitor data and perform firmware updates. In addition, it supports data logging for detailed performance analysis. New with this generation is the support of the I-BUS2 telemetry of Flysky NB4 remote controls, for which a separate function for data acquisition has been implemented. This means that these data such as the battery voltage, motor speed, operating current, the temperature of the controller and motor as well as much other information can be displayed in real time on the transmitter.

And to ensure that everything works smoothly, the AXE Plus R3 controller has protection according to the IP67 standard. This means that it is protected against water and dust and nothing stands in the way of long-lasting trips in different weather conditions. With its versatility and a wide range of adjustable parameters, the Xerun AXE Plus R3 controller offers both optimal performance and control for crawler vehicles for a wide range of requirements.

Characteristics

Greater performance thanks to FOC (Field-Oriented-Control) technology.
Drag brake adjustable up to 200% for unprecedented holding power on slopes.
Super BEC with max. 6A and three voltage levels for using different servos
Waterproof and dustproof according to IP67 standard.
Smart torque delivery and speed control for easy control and constant speed under all loads.
Built-in Bluetooth module.
Multiple controller protection functions including reverse polarity protection.
Only compatible with Xerun AXE "R2" and "R3" motor series.

Technical data

Type: Brushless Sensored FOC
Current (continuous/short): 135A / 600A
Cell count: 2S-6S LiPo
Motor Limits: Only supports the Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V at 6A (switch mode)
Waterproof: Yes
Cable battery/motor: 1x 12AWG (black, 265mm)
1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by the BEC
Connectors: XT60
Programming: Via Bluetooth and "HW LINK" app
Firmware upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Use: 1/10, 1/8, 1/6 Rock Crawler
