The Gens Ace iMars D300 Dual Channel Charger (EU) is a powerful, intelligent charger and discharger for demanding RC users. As part of the G-Tech Eco System , it was specifically designed for G-Tech Smart batteries , but is also fully compatible with non-smart LiPo, LiHV, LiFe, and NiMH batteries .

When a G-Tech Smart battery is connected, the iMars D300 automatically detects the battery type, cell count, voltage, and recommended charging current via the Smart Balance connector. With conventional batteries, all parameters can be set manually. Thanks to its dual-channel design, two batteries can be charged or discharged simultaneously and independently.

With up to 300 W AC power or 2 x 350 W in DC mode , a maximum charging current of 16 A per channel , and numerous intelligent charging and safety features, the iMars D300 is suitable for both home and track use. The compact housing, 2.4" IPS color display , and active thermal management complete the package.

Features

• Dual-Channel AC/DC Smart Balance Charger
• Automatic battery detection for G-Tech Smart batteries
• Manual setting for standard batteries
• Max. 16 A charging current per channel
• AC power up to 300 W, DC power up to 2×350 W
• 7 operating modes:
  • Charge (Load)
  • Discharge
  • balance
  • Storage
  • ExtDischarge
  • Sync Charging (2-in-1 fast charging)
  • Digital power supply
• External discharge function
• Integrated DC power source (e.g. for tools)
• Active cooling system with controlled heat dissipation
• Extensive protection functions (short circuit, overcurrent, overvoltage, overcharge)
• UL94-V0 flame-retardant enclosure
• Compact, lightweight design with IPS display

Technical data

• Input voltage: AC 100–240 V / DC 7–30 V
• Output voltage: DC 1–30 V
• Max. input current (DC): 34 A
• Maximum charging power:
  • AC: 300 W
  • DC: 2×350 W
• Charging current: 0.1–16 A ×2
• Discharge current: 0.1–3 A ×2
• Discharge power: 15 W × 2
• Cell balance: 1–6S
• USB output: 5V / 2.4A
• Display: 2.4" IPS-LCD
• Supported battery types:
  • LiPo / LiHV / LiFe: 1–6S
  • NiMH: 1–16S
• Dimensions: 145 × 76 × 62 mm
• Weight: approx. 530 g

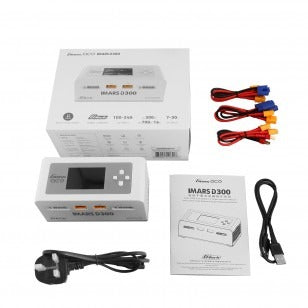

Scope of delivery

• iMars D300 charger
• AC power cord
• XT60-T adapter
• XT60 to EC5 adapter
• XT60 to EC3 adapter
