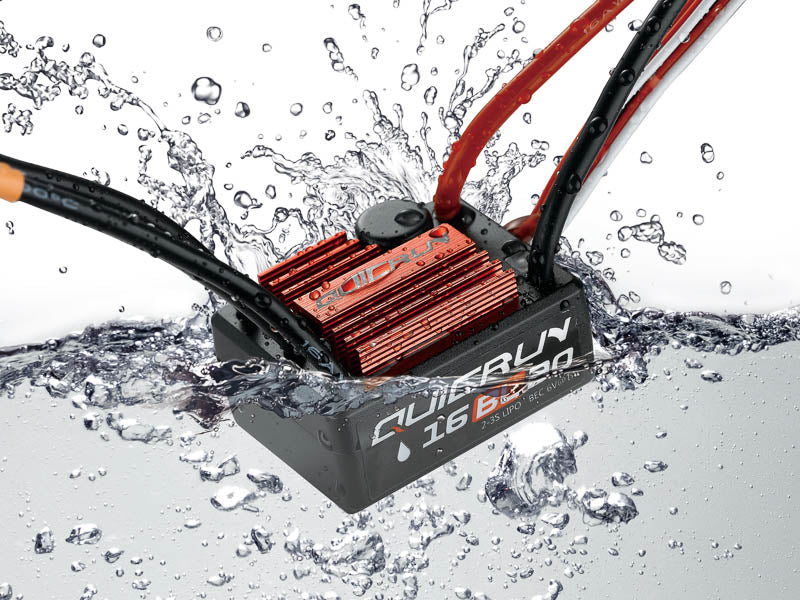

The Hobbywing QuicRun WP16BL30 is a compact, powerful brushless speed controller for 1:16 and 1:18 scale RC vehicles. As part of the popular QuicRun series, it is particularly aimed at beginners and advanced drivers who value reliability, ease of use, and excellent value for money.

Thanks to its water- and dust-resistant design, the WP16BL30 is suitable for almost all weather conditions and performs admirably on both on-road and off-road tracks. The sensitive throttle response, proportional braking, and multiple adjustable acceleration levels allow for optimal adaptation to vehicle type, track, and personal driving style.

The setup process is intentionally kept simple: all basic settings can be configured directly via the SET button on the controller. An optional LED Program Card can be used for even more convenient parameter configuration.

Characteristics

• Water and dust resistant (WP) for reliable use in all weather conditions
• Proportional brake with adjustable maximum braking force and automatic brake
• 9 selectable acceleration levels from "soft" to "aggressive"
• Extensive protection features:
  • Undervoltage cutoff (LiPo protection)
  • Overheating protection
  • Gas signal loss protection
• Easy programming via SET button

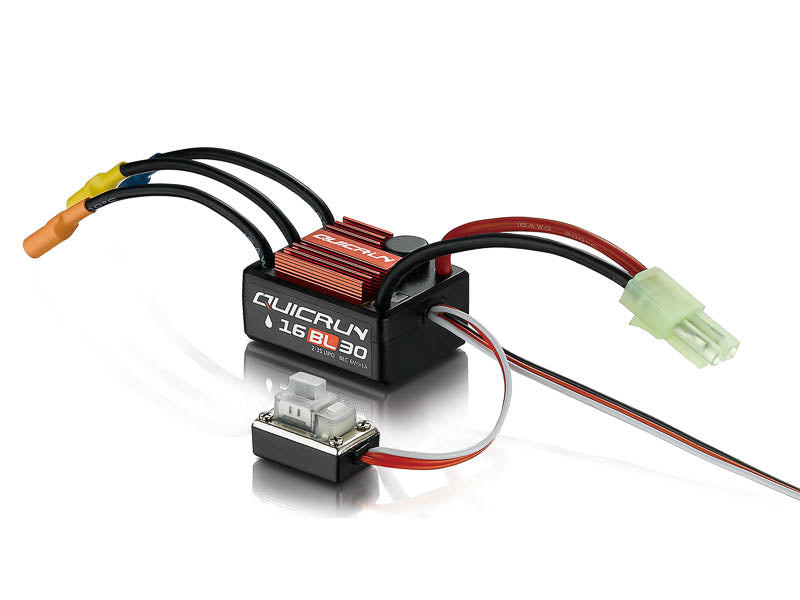

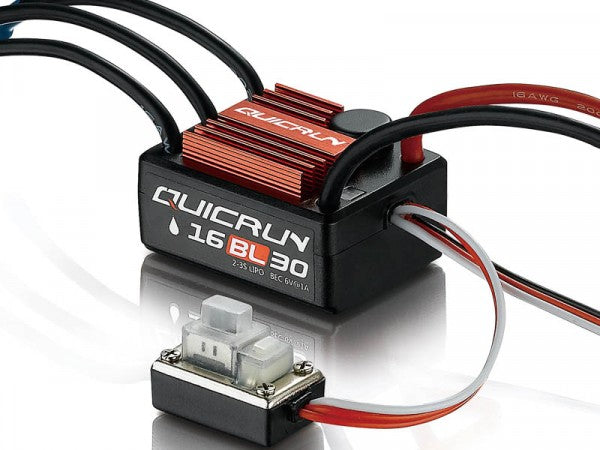

• Optionally programmable with LED Program Card
• Compact design – ideal for small RC models

Technical data

• Continuous current / Short-term current: 30A / 180A
• Internal resistance: 0.002 ohms
• Motor type: Sensorless brushless motors
• Intended use: 1:16 & 1:18 On-road / Off-road / Buggy / Monster
• Battery types:
  • 2-3S LiPo
  • 4–9 cells NiMH
• Engine limits:
  • 2S LiPo / 6 NiMH
    • On-road: ≤ 2435, < 8000 KV
    • Offroad/Buggy/Monster: ≤ 2453, < 5000 KV
  • 3S LiPo / 9 NiMH
    • On-road: ≤ 2453, < 5500 KV
    • Offroad/Buggy/Monster: ≤ 2453, < 3500 KV
• BEC: 6V / 1A (Linear Mode)
• Dimensions: 36 × 28 × 16 mm
• Weight: 38 g
• Fan: without fan operation
• External programming port: no
