Elceram Oxide 1/8 Burshless Relger G1 Offroad 2-4S is the latest innovation in the field of RC Car technology and sets new standards with its revolutionary Battery current and discharge monitoring and intelligent algorithms to protect the ESC . Thanks to the Advanced Cooling Technology based on an aluminum oxide cooler, the Oxide 1/8 offers excellent thermal conductivity and can be used with powerful motors up to 2300 kV.

The outstanding features of this ESC include:

• Revolutionary real-time monitoring of battery current and discharge
• Intelligent algorithms to protect the ESC in case of engine failure or mechanical problems
• Reverse polarization protection and improved water and dust resistance
• TFT LCD color display with matte finish for a user-friendly interface

The Oxide 1/8 is specially designed for 1:8 off-road vehicles, and it is also a 1:8 on-road version is planned and will be released later this year.

Programmable parameters and functions include:

• Revolutionary easy Rx calibration
• Real-time monitoring: battery status, ESC and motor temperatures, engine diagnostics and more
• Pre-race diagnostics: engine temperature, sensor cable, faulty motor, battery, BEC voltage and more
• Easy programming: throttle, brakes, boost and turbo time, Hall angle and many other functions
• Race data logging, temperature curves, histograms and more
• Adjustable maintenance reminder for easy checking

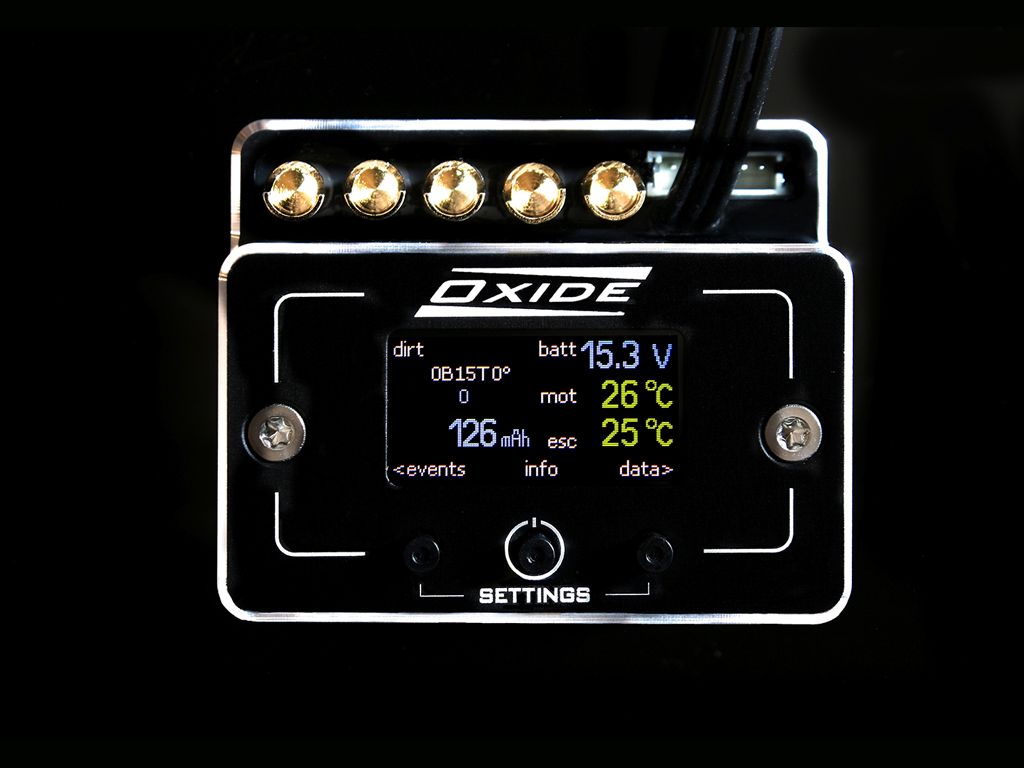

The TFT LCD color display with a resolution of 160 x 80 pixels allows you to adjust and read all parameters directly on the ESC, without the need for a programming card or mobile app. With just three buttons, you can quickly adjust all the necessary settings and check all the necessary parameters for the race at a glance.

The Advanced Cooling Technology The OXIDE ensures that the MOSFET transistors are cooled without an additional thermal conductivity layer. This ensures excellent thermal conductivity and long-term resistance to high temperatures and stresses.

The compact dimensions of the OXIDE 1/8 make it ideal for all types of 1/8 Off-Road RC Cars . Weighing only 112g without cables and featuring a special design that places 70% of the weight at the bottom of the ESC, the stability of your vehicle is further increased.

Installation of the OXIDE 1/8 is quick and easy, either with the included double-sided adhesive tape or with two M2.5 screws. If necessary, the ESC cover with display and buttons can be rotated 180°.

Specifications:

• Type: 1/8 off-road, brushless, sensored
• Waterproof: Yes
• Polarization protection: Yes
• Continuous/Pulse current: 200A / 1500A
• Input voltage: 2S – 4S LiPo
• BEC output adjustable voltage: 6.0 – 8.4V
• BEC current Continuous / Pulse: 6A / 15A

Applications:

• Suitable for sensor-controlled brushless DC motors up to 2300 kV
• Vehicles: 1/8 Buggy, Truggy and other models
• Zero Timing (Blinky Mode) supported
• External capacitors required (included in package)

Experience the future of RC racing with the Elceram Oxide 1/8 Burshless Relger G1 Offroad 2-4S – the perfect partner for your RC Car Adventure!
