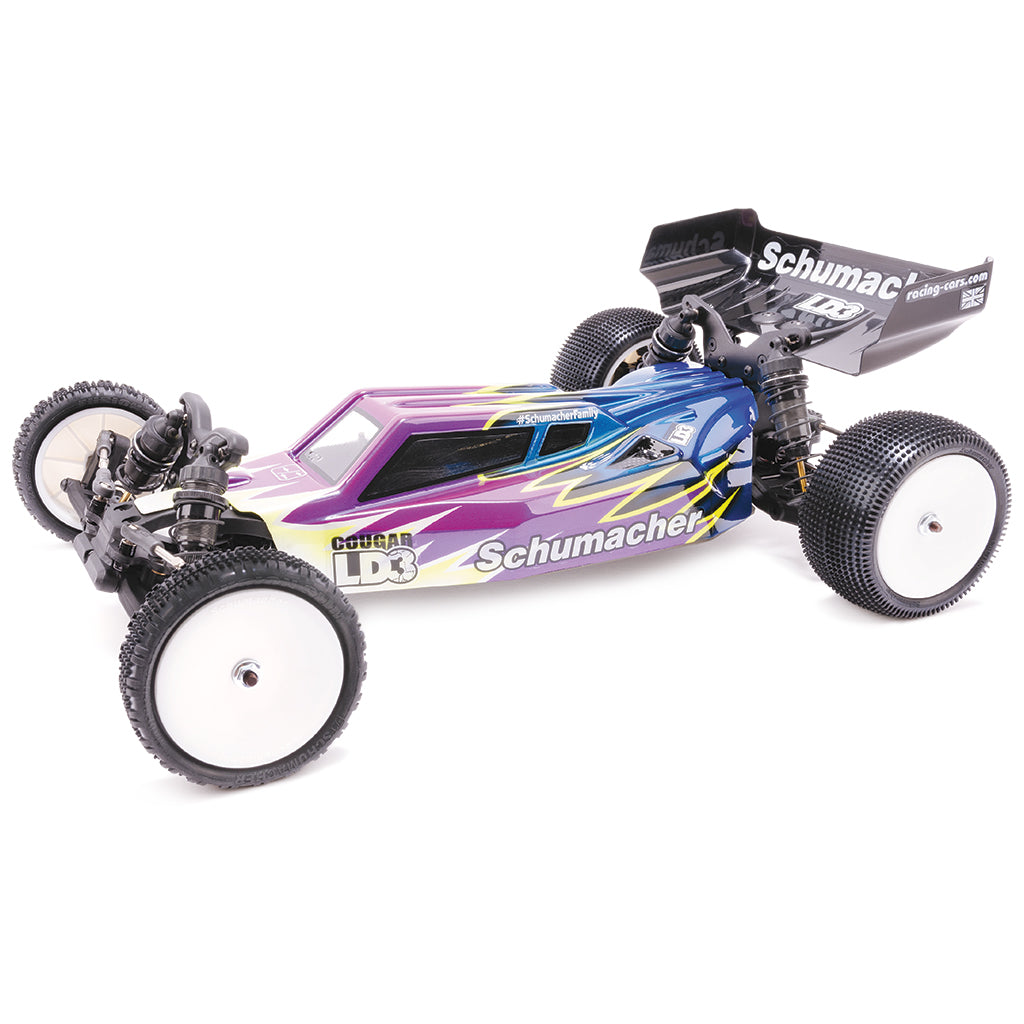

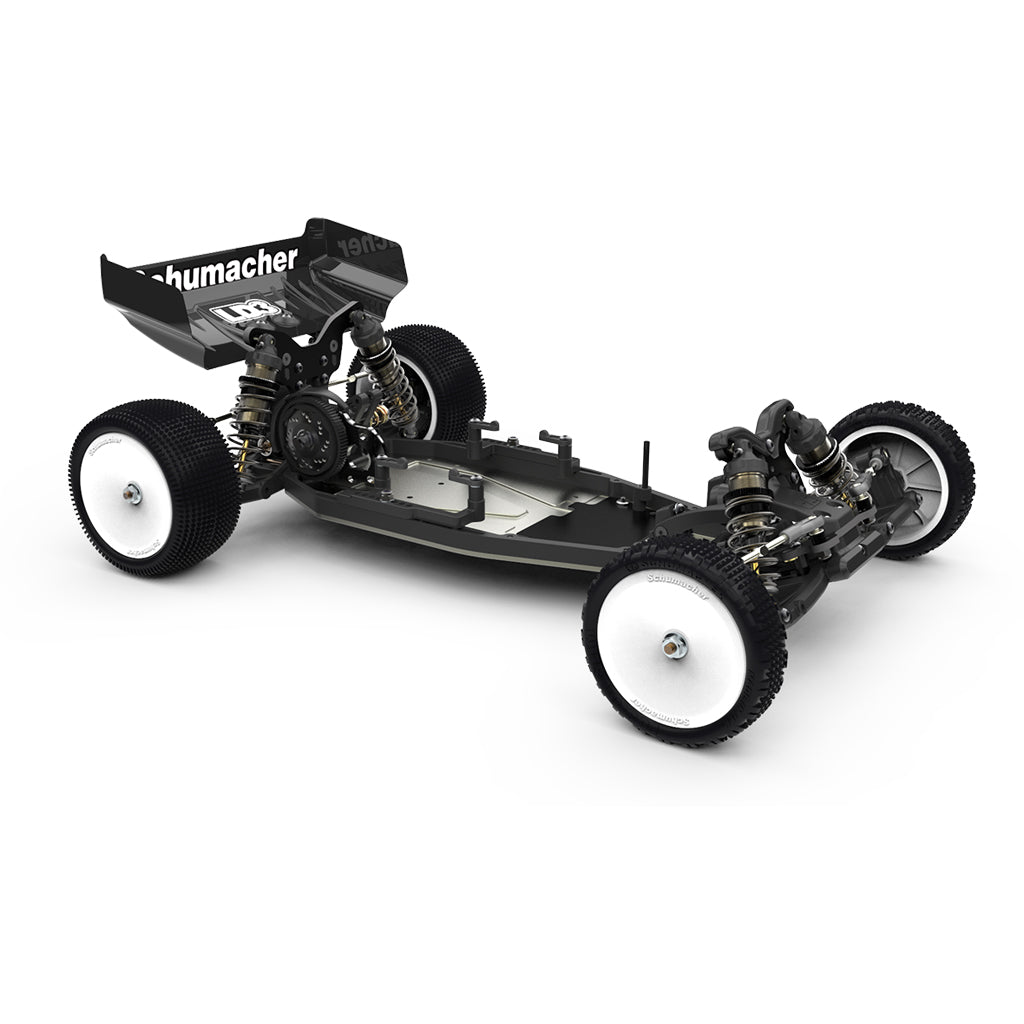

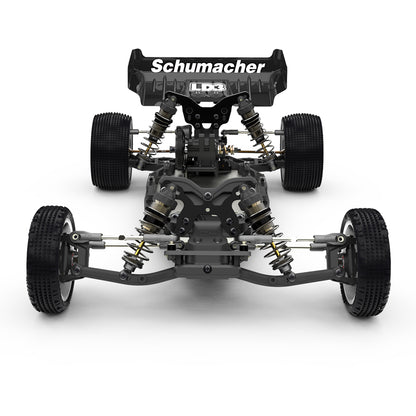

Schumacher Cougar LD3 - MOD Spec - 1/10 2WD Buggy Kit

The LD3 improves and refines Schumacher's class-leading 1/10 2WD racing buggy. He has already achieved numerous national and international racing victories, including a world championship podium.

The LD3 is more durable, easier to use, lighter and even faster. With 3 different chassis specifications, it will shine on all track surfaces and in all conditions.

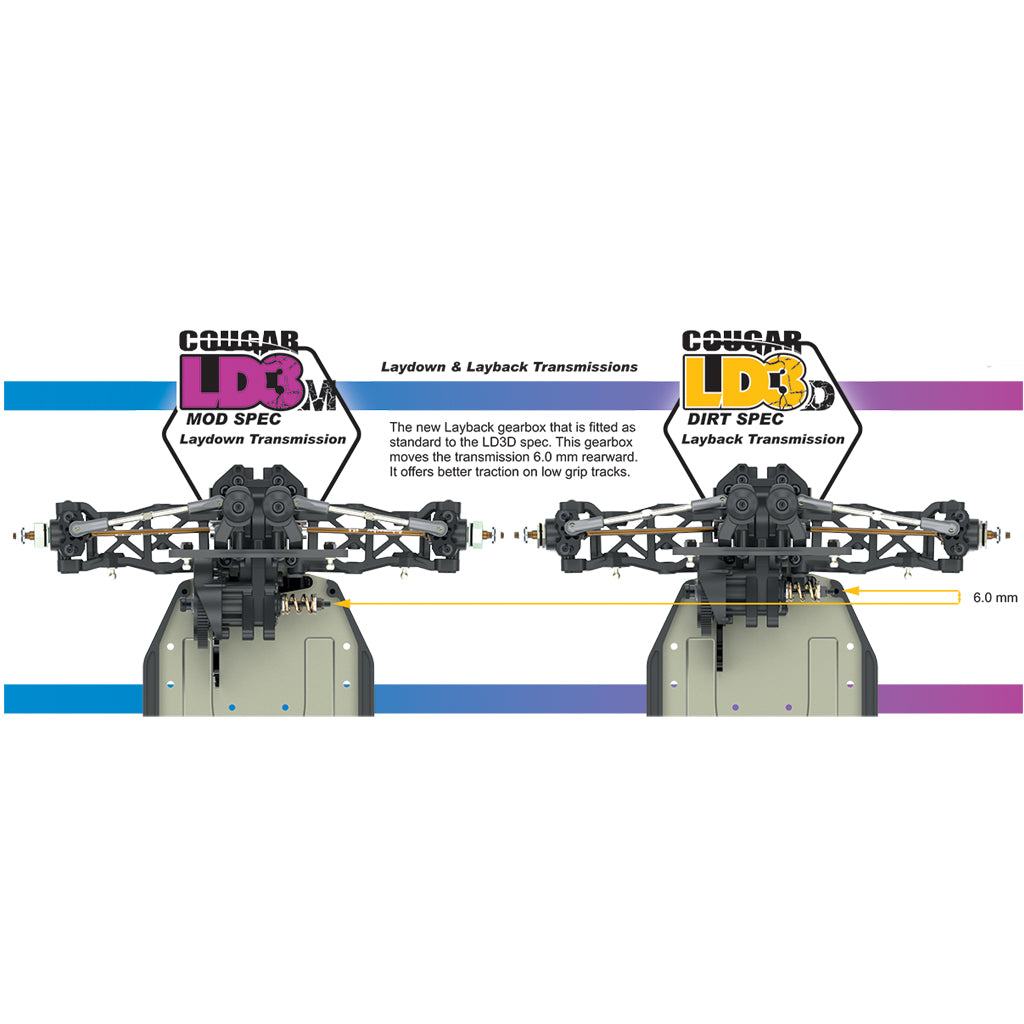

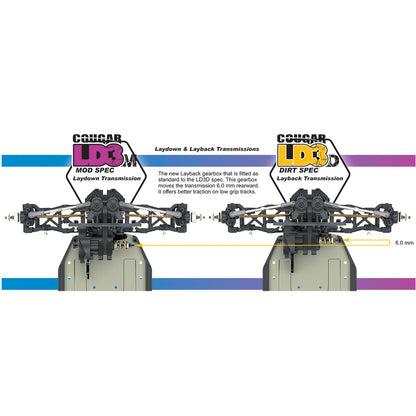

This #K208 LD3M is optimized for medium to high grip astro and carpet tracks, with the more forward 'laydown' motor position.

A great car with great support from the team at Schumacher makes the LD3 the best 2WD buggy for you to enjoy racing success.

LD3M - specification

• NEW - Front quarter geometry included;
• NEW - Front wishbone.
• NEW - Front hub carrier with improved adjustability.
• NEW - Front 5 degree caster block.
• NEW - Fine adjustment of the external camber with greater adjustment options for the front axle position.
• NEW - Larger hub bearings and axle construction for increased durability.
• NEW - Front hexagon -2.0 mm.
• NEW - S2 steering arms
• NEW - Improved pivot point system for the kingpin and outer pivot pin.

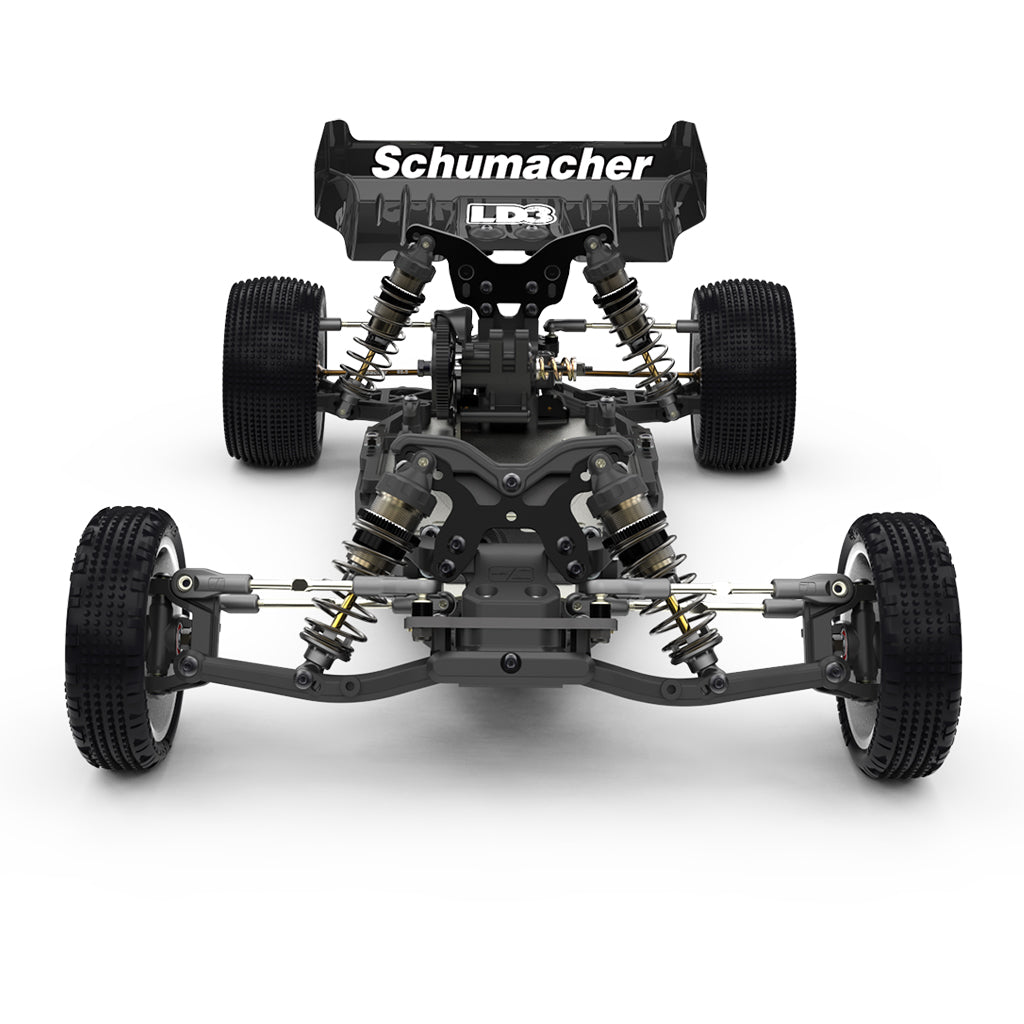

• NEW - 4mm S2 front shock towers for a lower center of gravity.
• NEW - 4mm S2 rear shock tower with new geometry.
• NEW - One-piece shock caps for improved sealing and weight savings.
• NEW - Molded shock absorber pistons.
• NEW - 5.5mm ball sockets for the front camber bar.

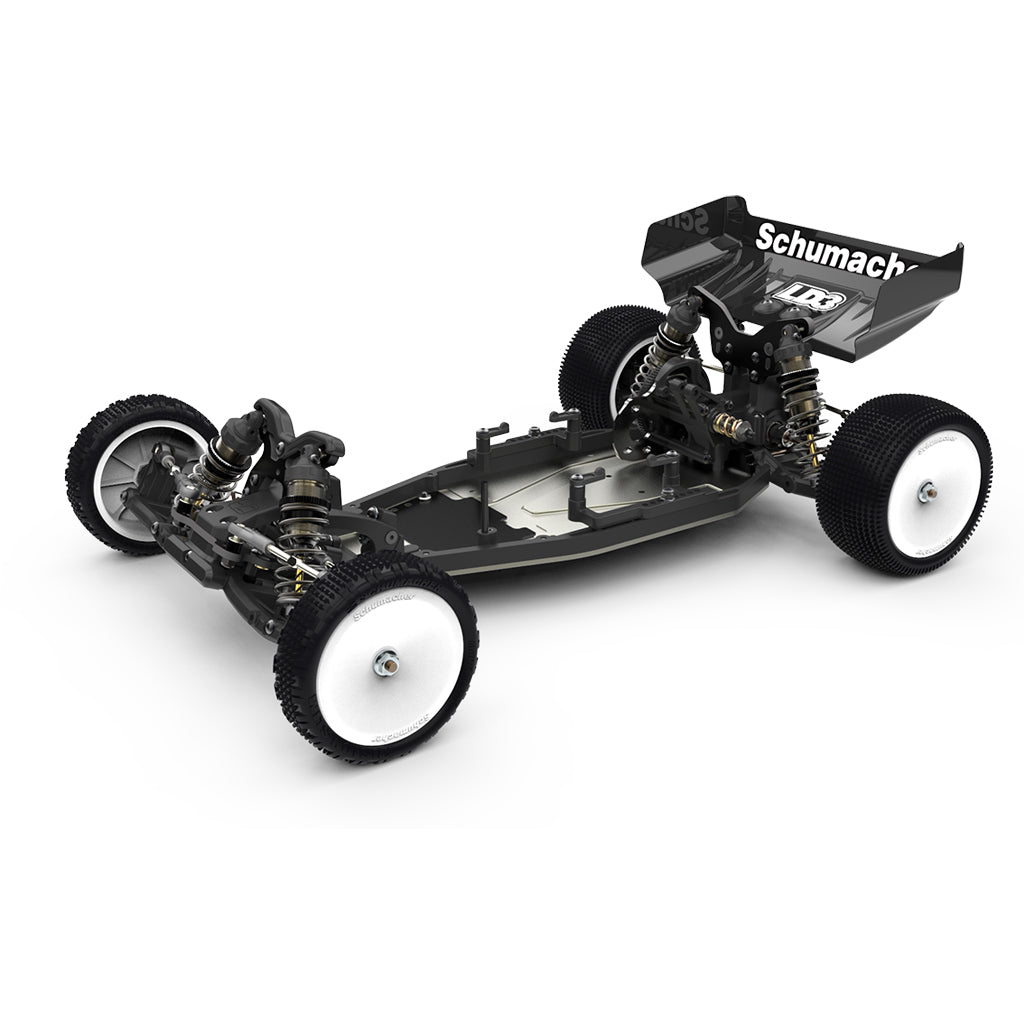

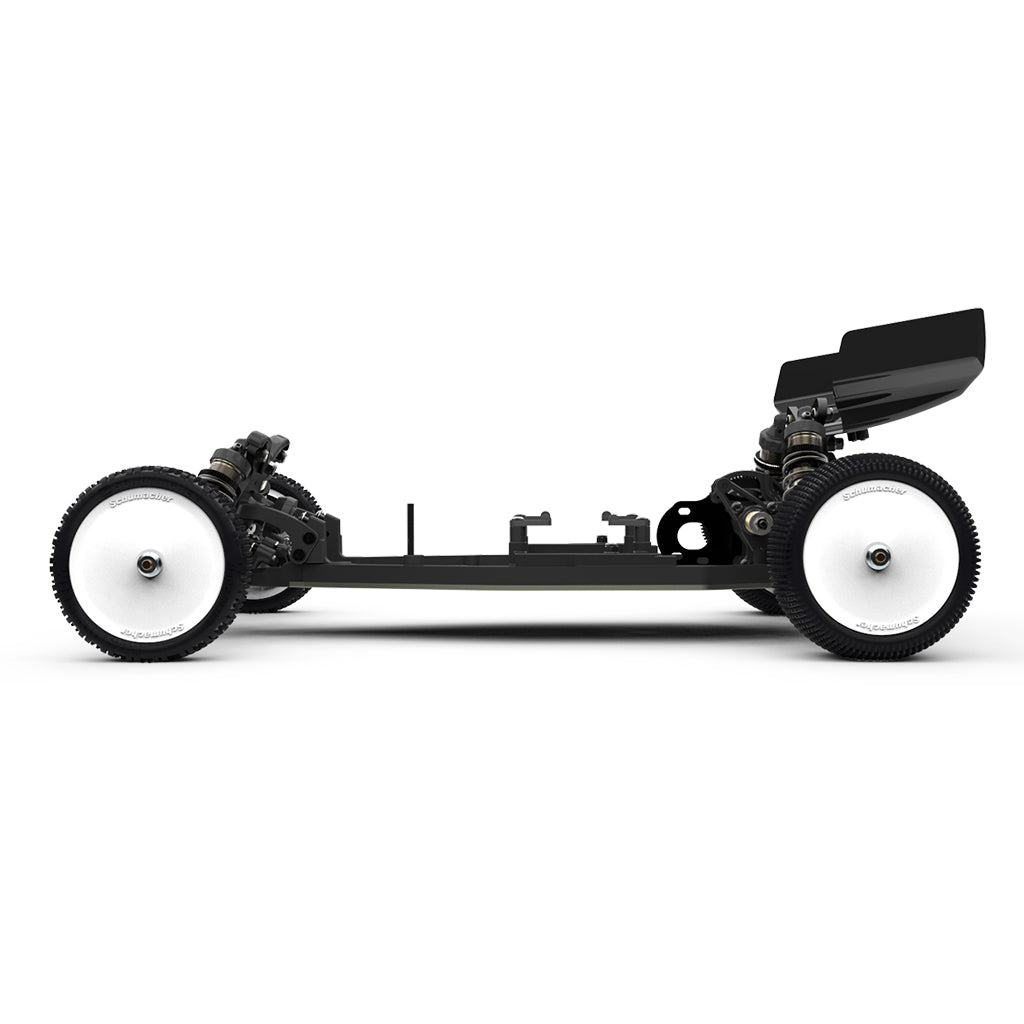

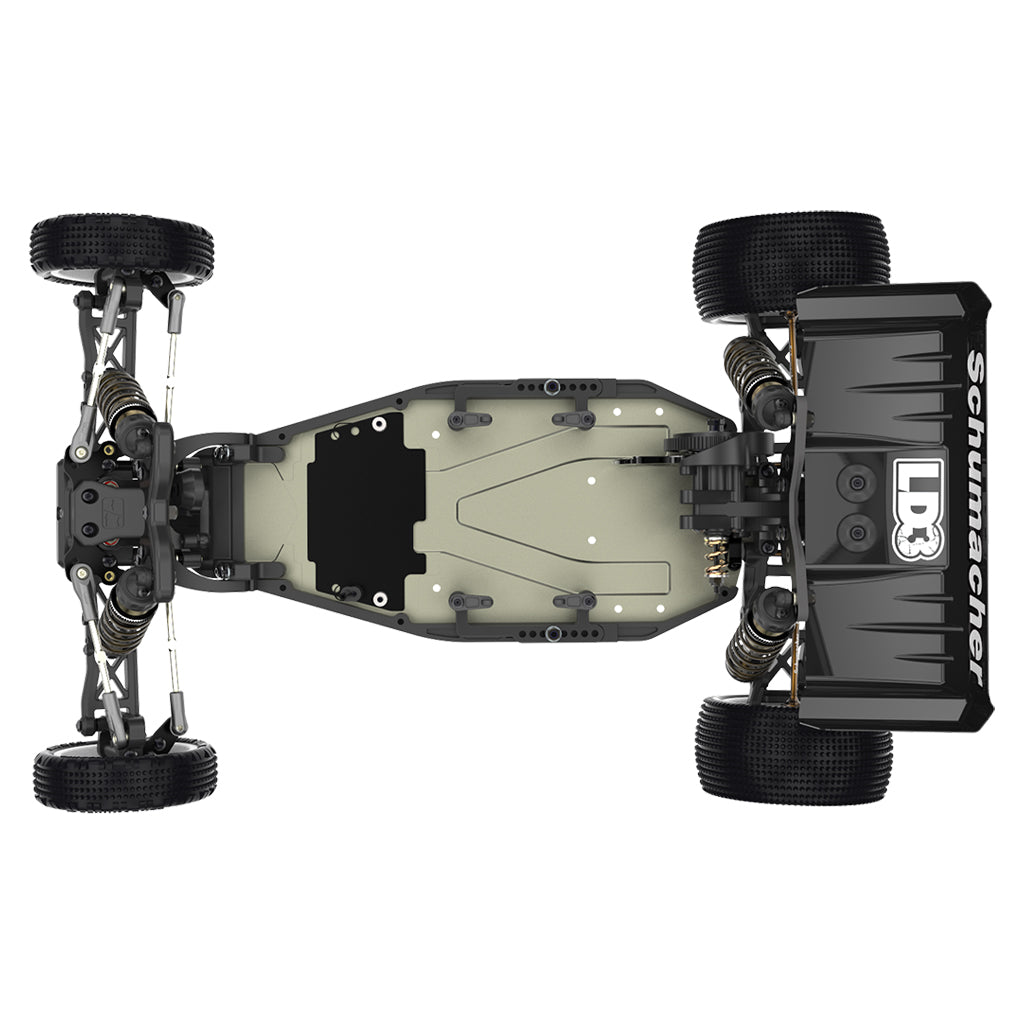

• NEW - 2.5 mm lighter aluminum chassis, recessed radio shelf and redesigned rear area.
• NEW - Chassis-matched side panels with rear flex slots to adjust chassis stiffness.
• NEW - Internal gearbox with new double pad through slipper for more central mounting and 80t spur gear.
• NEW - Cast internal idler wheel with improved Teflon coated material.
• NEW - Replacement of the internal shims in the differential for increased durability.
• NEW - Rear suspension wishbone and aluminum rear wheel belt with larger wheelbase adjustment and new shock absorber positions.
• NEW - Bolt mount for improved reliability.
• NEW - Rear hub carrier with fully adjustable insert system and camber adjustment.
• NEW - AX037 - Aerox Trident Wing 1.0mm.

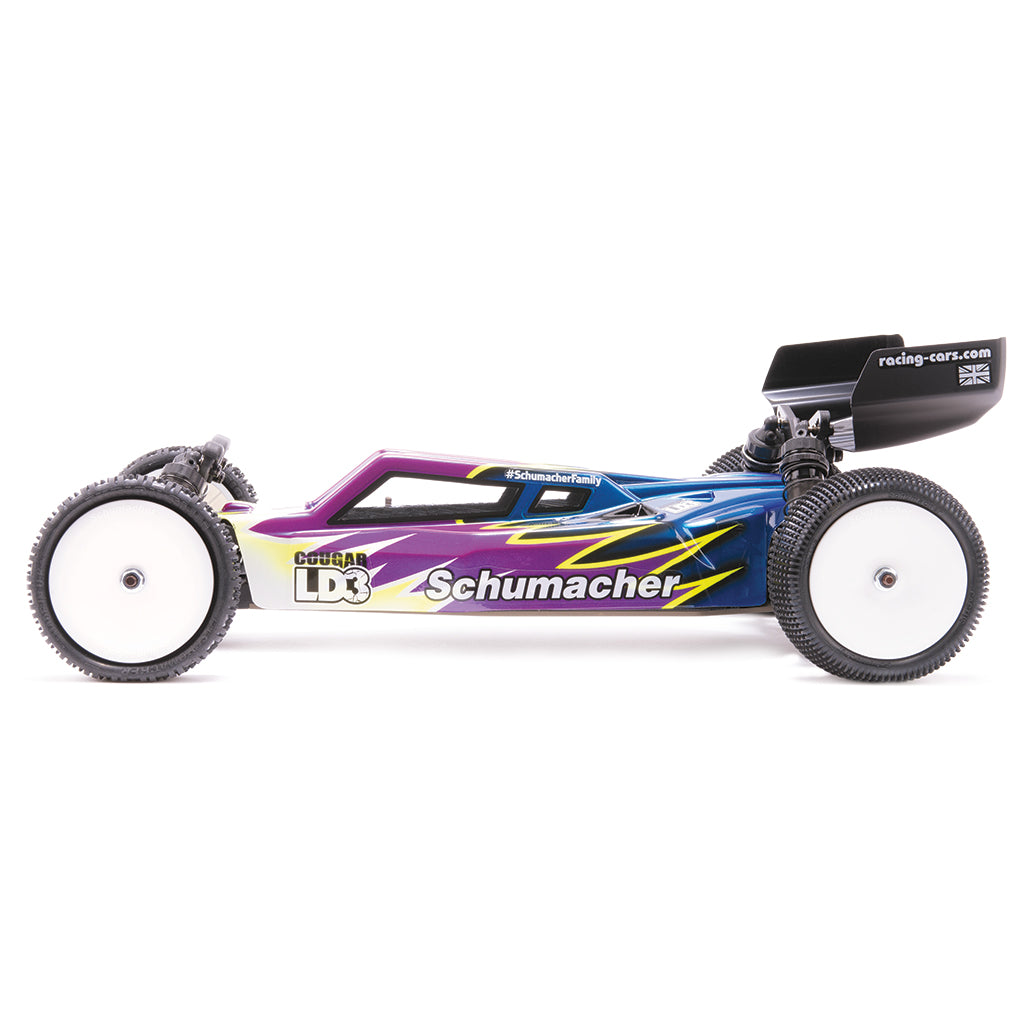

• NEW - JC0432 - JConcepts S2 Cougar LD3 body.

Including all these features...

- Class-leading front suspension geometry with durable components and a range of optional alloy parts that provide more adjustability to set your LD3 up for all track conditions.
- Front suspension, allows zero and minus five wheelbase lengths without the need for an additional chassis.
- 90° stepped CVD light steel drive shafts - 65.5mm.
- Easy access battery connection system with multiple mounting options.
- Low wing mount.
- Compact steering system for improved weight distribution in the line, with adjustable and dynamic Ackerman.
- 12mm hex rims with industry standard offset.
- 13mm big bore shock absorbers with big bore "CORE" springs. Threaded sleeves and double O-ring seal.
- Shock absorber housing with O-ring seal to prevent loosening.
- Lightweight lower spring retaining plate.
- Threaded spring plate for easy height adjustment and adjustment.
- Screw-on piston attachment with titanium nitride shafts for easy assembly, precision and durability.
- Optional arrangement of the rear shock absorber in front of or behind the wishbones, standard in the kit.
- Front shock tower cover to protect your vehicle and the track.
- Adjustable rear roll centers, inside toe-in and anti-squat.
- Cable management system.
- Easily accessible gear system. For quick access to the diff and maintenance.
- High-precision ball bearings in all areas
- Spur gear cover.
- Small gearbox with low rotating mass. 3-position height adjustment to accommodate drive shaft immersion and mixed track conditions.
