The SkyRC Q100 Neo sets new standards for compact, high-performance chargers. Despite its handy design, it offers four fully independent charging outputs and features intelligent power management for maximum efficiency. With up to 240W DC or 100W AC charging power, the Q100 Neo is ideally suited for RC racing, FPV aircraft, drones, and demanding hobbyists.

Each of the four charging ports operates independently , allowing different battery types and cell counts to be charged simultaneously . Virtually all common battery types are supported: LiPo, LiHV, LiFe, Li-Ion, NiMH, NiCd, and Pb . This makes the Q100 Neo a true all-rounder for the workshop, racetrack, and home.

Thanks to intelligent power management, the available power is dynamically distributed across the active channels. Once a battery is fully charged, its power is automatically redirected to the remaining ports – this reduces the overall charging time and makes optimal use of every available watt-hour.

Another highlight is the integrated balance port , which enables significantly faster discharge. In combination with the main connector and balancer, up to 15 W of discharge power is possible, compared to only 5 W via the main connector alone. This makes the Q100 Neo not only suitable for charging, but also ideal for battery maintenance, diagnostics, and discharge cycles .

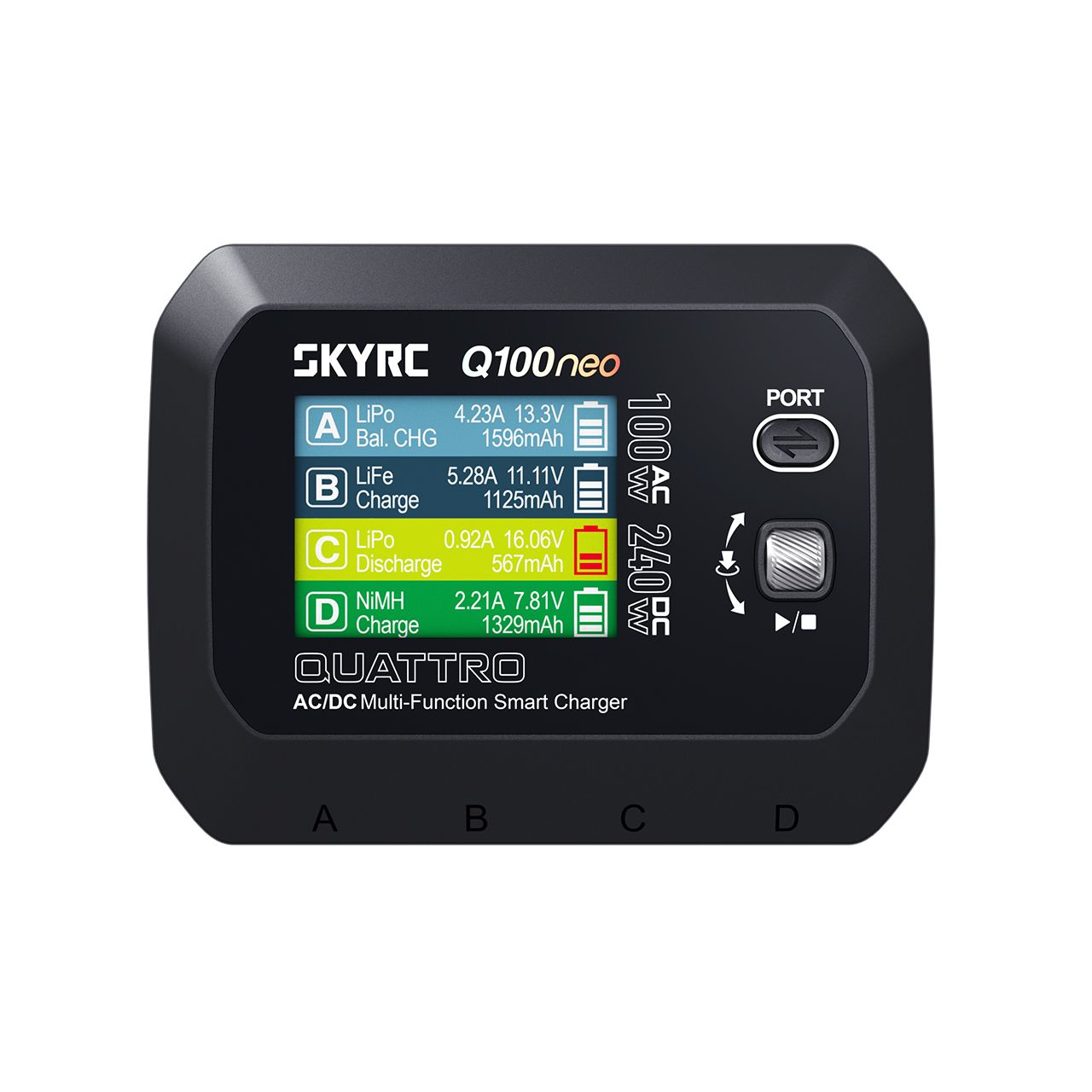

The large 2.8 inch color display with high resolution provides a clear presentation of all relevant data such as voltage, current, capacity and charging progress – clear, modern and intuitive to use.

Highlights

• 4 independent charging outputs
• 100 W AC / 240 W DC total power
• Dynamic, intelligent power distribution
• Supports almost all common battery types
• Faster discharge via balance port
• Compact design with high power density
• Large, clear color display
• Ideal for RC, FPV, drones & battery service

Technical data

Input voltage

• AC: 100–240 V
• DC: 10–30 V

Charging power

• DC: max. 240 W (4 × 60 W, dynamically distributed)
• AC: max. 100 W

Charging current

• 0.1 – 6.0 A

Balancing current

• max. 600 mA

discharge power

• 5 W (main connection)
• 10 W (balance port, LiPo 4S)
• up to 15 W combined

Battery types & cell counts

• LiPo / LiFe / Li-Ion / LiHV: 1-4S
• NiMH / NiCd: 1–8S
• Pb: 3S / 6S

Display

• 2.8" color display
• Resolution: 240 × 320 px
• 262,000 colors

Dimensions & Weight

• Dimensions: 140 × 108 × 43.5 mm
• Weight: approx. 491 g
